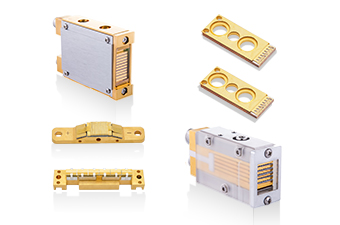

Diode Laser Packaged Bars and Arrays
Diode Laser Packaged Bars and Arrays
LDA series high power packaged bars provide OEM customers with scalable power up to kilowatts for pumping, industrial, medical and applications. The packaged laser bars can be configured for enhanced brightness through stacking, scaled linearly or vertically for optimized light and material integration. LDA series offer
Wavelengths at 808nm to 1100nm range
Modular and Compact design for ease of integration
Up to 100W CW and 300W QCW laser diode bars for high brightness
Packaged 10mm laser diode bar, various standard bar configurations (custom bar configurations available on request)
|
Packaged Bars
|
Center Wavelength
|
Output Power
|
Operation Mode
|
Cooling
|
Downloads
|
|
LDAC1-0808-020W
|
808nm
|
20W
|
CW
|
Conduction-cooled
|
Conduction-cooled Packaged Bars（CW）
|
|
LDAC1-0808-040W
|
808nm
|
40W
|
CW
|
|
LDAC1-0808-060W
|
808nm
|
60W
|
CW
|
|
LDAC1-09xx-060W
|
9xxnm
|
60W
|
CW
|
|
LDAC1-1064-040W
|
1064nm
|
40W
|
CW
|
|
LDAC1-0808-040W
|
808nm
|
40W
|
CW
|
Microchannel-cooled
|
Micro-channel Water-cooled Packaged Bars（CW）
|
|
LDAC1-0808-060W
|
808nm
|
60W
|
CW
|
|
LDAC1-0808-100W
|
808nm
|
100W
|
CW
|
|
LDAC1-09xx-060W
|
9xxnm
|
60W
|
CW
|
|
LDAC1-1064-040W
|
1064nm
|
40W
|
CW
|
|
LDAQ1-0808-100W
|
808nm
|
100W
|
QCW
|
Conduction-cooled
|
808nm Conduction-cooled Packaged Bars（QCW）
|
|
LDAQ1-0808-200W
|
808nm
|
200W
|
QCW
|
|
LDAQ1-0808-300W
|
808nm
|
300W
|
QCW
|
*Please know that 9xxnm center wavelength includes 915nm/940nm/980nm.
*Please contact us to discuss your unique requirements.
